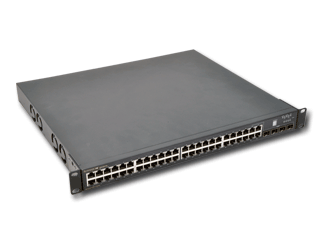

Supermicro SSE-G48-TG4, modulární L3 switch - 48GbE, 4x SFP 10GbE

-Wire-speed Layer 3 Routing -1:1 Non-blocking connectivity -1U form factor for flexible installation - 48 one Gigabit Ethernet ports - Switching capacity: 184 Gbps - Stacking performance - up to 48 Gbps - Forwarding rate: 131 Mpps

kód produktu 101.150251
Part number SSE-G48-TG4
Výrobca Supermicro
Dostupnosť Na požiadavku
Záruka 24 mesiacov
Uvedená cena je vrátane všetkých zákonných poplatkov
€ 1 734,15 bez DPH
€ 2 098,32 s DPH
ks

Podrobné informácie



Enterprise-Class Performance with Advanced Switching Capabilities in a 1U Form Factor for 1/10-Gigabit Ethernet Networking

SSE-G48-TG4 The SSE-G48-TG4 from Supermicro is a standalone 48-port Layer 2/Layer 3 1/10-Gigabit Ethernet switch. It offers a full suite of advanced Ethernet switching features - the same as in the Ethernet switch used in the Supermicro SuperBlade® server systems. Ports 45 through 48 are "combo" ports - each of them can be used for either an RJ45 connection or an SFP (1Gbps) connection. In addition to the 48 ports at 1-gigabit per second, the SSE-G48-TG4 offers up to four 10-gigabit per second "uplink ports". Provisioned through one or two dual-port Add-On-Modules, these uplink ports can be used to connect to 10-Gigabit Ethernet backbone networks or servers with 10-Gigabit Ethernet connectivity - or they can be "stacked" together to create an even larger capacity switch. Fiber or copper wiring options are available for the 10-Gigabit connections.

Offered in a 1U form factor, the SSE-G48-TG4 switch is ideal for use as a wiring closet aggregation switch, as a top-of-rack aggregation switch, or even as a core switch for a small business or branch office. A comprehensive set of management tools are available through either a Command Line Interface or through a Browser-based GUI.

Highlights
  • Wire-speed Layer 3 Routing
  • 1:1 Non-blocking connectivity
  • 1U form factor for flexible installation


Specification
  • Port Attributes:
     - 48 one Gigabit Ethernet ports
          * 48 RJ45 Copper ports
          * Four fiber SFP combo ports
          * Two or four 10 Gigabit Ethernet uplink ports
          (requires Add-On-Module(s) for choice of connector
          type – see "Optional Accessories" below)
          * Up to two stacking ports
          (requires AOM-SSE-X2S accessory)
     - Out-of-band RS-232 Management port
  • Performance:
     - Switching capacity: 184 Gbps
     - Stacking performance - up to 48 Gbps
     - Forwarding rate: 131 Mpps
  • Availability:
     - Spanning Tree (802.1D)
     - Rapid Spanning Tree (802.1w)
     - Multiple Spanning Trees (802.1s)
     - Virtual Redundant Routing Protocol (VRRP)
  • VLAN:
     - 802.1Q tagging, port and protocol based
     - 1024 VLANs
     - Dynamic VLAN Support (GVRP)
  • Quality of Service and DiffServ:
     - 8 priority queues per port
     - Adjusted WRR and Strict Priority Scheduling
     - Layer 2 / 3 / 4 Prioritization
     - Marking
     - Metering / Rate limiting
Specification (Continued)
  • Switching Features:
     - Link Aggregation - 24 groups w/ 8 members per group
     - LACP Support
     - Link Layer Discovery Protocol (802.1AB)
     - Jumbo Frame Support
     - Port Mirroring - N to 1. Tx & Rx Configurable
  • Routing Features:
     - Static Routing, RIP v1/v2, RIPng, OSPF v1/v2/v3, BGP
     - IPv4 and IPv6 Routing
     - VRRP (Virtual Router Redundancy Protocol)
     - DVMRP (Distance Vector Multicast Routing Protocol)
  • Multicast:
     - IGMP Snooping v1/v2/v3
     - IGMP v1/v2/v3
     - PIM SM, PIM DM
     - PIM SMv6
  • Security:
     - 802.1x Port Based Authentication
     - Switch access password protection
     - Layer 2 / 3 / 4 Access control Lists
     - RADIUS and TACACS+ Authentication
     - SSH / SSL Encryption
  • Management:
     - Web-basd management interface - HTTP, HTTPS
     - Industry standard CLI with telnet, SSH or local
       management port
     - Scripting capability
     - Command completion
     - Context sensitive "Help"
     - Multiple levels of user privileges (CLI and Web UI)
     - SNMP v1/v2/v3
     - Four RMON Groups - (1, 2, 3 and 9)
     - Logging - syslog
     - Dual firmware images
     - Configuration file - upload / download
  • Options:
     - AOM-SSE-X2F: Two-port XFP Connector Module
       for Fiber connections
     - AOM-SSE-X2S: Two-port SFP+ Connector Module
       for Copper or Fiber connections
  • Operating Conditions:
     - Operating temperature: 0 to 40°C
     - Power Consumption: 145 W

Dimensions
Height
  • 1.7" (43mm)
Width
  • 17.3" (440mm)
Depth
  • 15.2" (387mm)
Gross Weight
  • w/o modules: 13.4 lbs (6.06 kg)
  • w/ modules: 13.7 lbs (6.20 kg)
Available Colors
  • Black

Standard Parts List (Included in the box)
   - Switch
   - Power Cord (US style)
   - Console Cable
   - CD-ROM with User's Manuals
   - Mounting flanges (2)
   - Miscellaneous screws
   - Rubber foot-pads

Optional Accessories
   SFP+ Direct Attach Cables
     - CBL-0347L - One Meter Length
     - CBL-0348L - Three Meter Length
     - CBL-0349L - Five Meter Length

   CX4 Cables - For Stacking or 10GE Interconnect
     - CBL-0474L - One Meter Length
     - CBL-0389L-01 - Three Meter Length

   SFP+ Transceiver
     - AOC-E10GSFPSR - SFP+ Transceiver for use with fiber
       cable connections
     - AOC-TSR-FS - SFP+ Transceiver for use with fiber
       cable connections

   Add-on Modules
     - AOM-SSE-X2F - Dual-port XFP fiber interface module
     - AOM-SSE-X2S - Dual-port SFP+ interface module for
       copper or fiber connections


  • AOM-SSE-X2F
  • AOM-SSE-X2S


Parametre

Formát Rack 19"
Počet portov 48
Typ portov switche 10 GbE
