Supermicro AOC-SG-I4, (4×GbE,PCI-E8 gen2,LP,2xIntel82576,iSCSI boot,jumbo fr,VMDq, obdoba E1G44ET)
- PCI Express 2.0 (2.5GT/s)
- Intel I/O Acceleration Technology 2 (I/OAT)
- Jumbo Frames support up to 9.5KB packets
- VMDq for Virtualized Environments
- Next-Generation VMDq
- Low-latency interrupts
- Wake On LAN (WOL)
- Pre-boot Execution Environment (PXE)
- Direct Cache Access (DCA)
- iSCSI Boot
| kód produktu |
218.150624 |
| Part number |
AOC-SG-I4 |
| Výrobca |
Supermicro
|
| Dostupnosť |
Na požiadavku |
| Záruka |
36 mesiacov |
| Uvedená cena je vrátane všetkých zákonných poplatkov |
Podrobné informácie
 |
|
|
|
 |

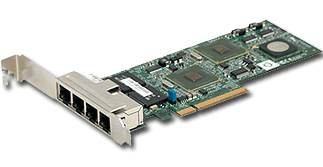

High-performance, Cost-effective Low-profile Quad-port Gigabit Ethernet Card
Supermicro Standard Low-Profile 4-port Gigabit Ethernet LAN card
AOC-SG-I4 provides industry's best performance per cost ratio through its high-performing, PCI Express 10/100/1000 Ethernet connection. A compact design controller that also improves flexibility and performance in a virtualized environment in multi-core systems by lowering interrupt overhead and providing sorted multiple data queue paths. |
 |
To order, contact your distributor. This product is only available through Supermicro. |
| |
|
| RoHS |
- RoHS Compliant 6/6, Pb Free
|
| Environmental |
- Operating temperature: 0C to 55C
|
| |
|
| Motherboards |
Support motherboards with minimum PCI-e x8 slot |
| Servers |
Supports servers with low-profile or full-height PCI-e expansion slot |
|
|
|
|
- PCI Express 2.0 (2.5GT/s)
- Intel I/O Acceleration Technology 2 (I/OAT)
- Jumbo Frames support up to 9.5KB packets
- VMDq for Virtualized Environments
- Next-Generation VMDq
- Low-latency interrupts
- Wake On LAN (WOL)
- Pre-boot Execution Environment (PXE)
- Direct Cache Access (DCA)
- iSCSI Boot
|
| |
|
- Dual Intel 82576 dual-port Gigabit Ethernet controller
- Four RJ45 connectors
- PCI-e x8
- Low-profile standard form factor
- Intel I/O AT to improve CPU utilization
- MSI-X support to minimize the overhead of interrupts and allow load balancing of interrupt handling between different CPUs/cores
- Low-latency interrups
- Support caches up to 64 packets descriptors per queue
- Support for transmission and reception of packets up to 9.5KBs (Jumbo Frames)
- IEEE 802.3 auto-negotiation
- IEEE 802.3 compliant flow-control support
- VMDq for virtualized environments
- Next-Generation VMDq that provides lookback functionality. This improves throughput and CPU utilization
- Direct Cache Access (DCA)
- Tx/Rx IP, TCP, and UDP checksum offloading (IPv4, IPV6) capabilities
- Tx TCP segmentation offloading (IPv4, IPv6)
- Wake on LAN (WOL) support
- iSCSI boot
- Supported cable length is more than 100 meters
- Supported OS: Windows, Linux, VMWare, FreeBSD, Netware
|
|
|
Parametre
| Typ sieťovej karty |
Metalika |
| Rýchlosť sieťovej karty |
1 GbE |
| Počet portov |
4 |
| Zbernica |
PCI-E 2.0 8 |
| Profil |
FH/LP |
